Advantages of the ACRYSOF® platform
Years of experience confirm advantages of Acrysof’s both composits and design
Biomechanics. Refractive predictability
The material interacts with the capsule, which prevents the migration of cells to the optics
Biomaterial. Transparent capsule
STABLEFORCE ® haptic elements (STABLEFORCE) promote exact placement of IOL in a capsule bag
Axial and rotational stability provide long-term predictability of refraction
The robust, monobloc IOL design makes it easy to implant through a small incision
BioOptics. Functional eyesight
Chromophore and aspherical optics AcrySof® Natural (NEUCHURAL) improve functional eyesight 1.4 (compared to the absence of this technology)

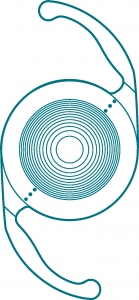

AcrySof® IQ PanOptix®
ACRYSOF® IQ PANOPTIX® IOL – comfortable eyesight at different distances

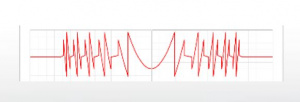

ENLIGHTEN® (ENhanced LIGHT ENergy) optical technology, which simulates the characteristics of a healthy lens, provides:
- high degree of light usage
- more comfortable eyesight at short and medium distances
- lever dependence rate from the diameter of the pupil

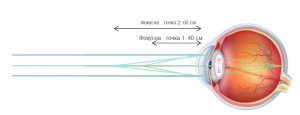

With a pupil diameter of 3 mm, allows to deliver 88% of the energy of light to the retina. 50% of the energy of light is distributed to eyesight for look at distance , and the rest of the energy is evenly distributed between the nearer and middle focus, to ensure optimal eyesight at all three points.
- 3 degrees of height provide 3 focal lengths
- Redistribution of energy from the 3rd focal length of 120 cm to form long distance look.
All these advantages are provided by non-apodized diffraction multifocal optics.
It distributes the energy of light to form three focal points regardless of the diameter of the pupil, which means that it provides a wide range of eyesight, regardless of the degree of illumination
The size of the diffraction zone was chosen to be 4.5 mm to reduce the dependence on pupil diameter or lighting conditions. A smaller area gives compromise vision for short and medium distances in mesopic conditions or in patients with a wide pupil, and a larger area gives compromise vision in the distance
Specifications
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
Optical part design – one-component IOL with diffraction aspherical optics, toric
The cylindrical force of the lens in the IOL plane is from 1.00 D to 3.75 D
The angle of inclination of the base elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with a increment of 0.5 D; from 31.0 to 34.0 D with an increment of 1.0 D, with additional vision correction at a medium distance +2.17 D and +3.25 D at close range
The A-constant is 119.1
One-component IOL made of hydrophobic acrylate / methacrylate copolymer that filters UV and blue light
The form of haptic elements is Modified L of StableForce technology
Type of sterilization – gas.
The diameter of the optical part is 6.0 mm
The total length, taking into account the support elements – 13.0 mm
Optical part design – one-component IOL with diffraction aspherical optics, toric
The cylindrical force of the lens in the IOL plane is from 1.00 D to 3.75 D
The angle of inclination of the support elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with a step of 0.5 D; from 31.0 to 34.0 D with a step of 1.0 D, with additional vision correction at a medium distance +2.17 D and +3.25 D at close range
The A-constant is 119.1
One-component IOL made of hydrophobic acrylate / methacrylate copolymer that filters UV and blue light
The form of haptic elements is Modified L of StableForce technology
Sterilization – gas.

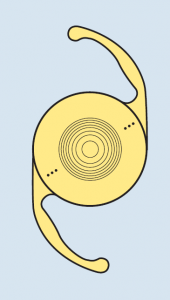

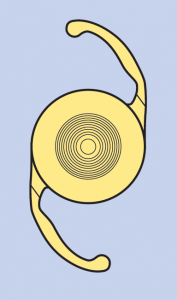

AcrySof® ReSTOR®
Multifocal lens from Alcon. The only one with a central part is 100% dedicated to distance eyesight
These lenses have biconvex optics with a diffractive surface structure, the passage of light through which provides pseudo-accommodation vision, allowing the patient to restore eyesight at close range without further correction as well as to reduce the degree of dependence on glasses.
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
Design of the optical part – aspherical, biconvex, asymmetric, apodized diffraction-refraction optics, multifocal IOL, with additional optical power +3.0 Diopters
The angle of inclination of the base elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with an increment of 0.5 D; from 31.0 to 34.0 D in increments of 1.0 D
The A-constant is 118.9
One-component IOL of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate with chromophore ImprUV ™;
The form of haptic elements is Modified L of Slimplant and StableForce technology
Sterilization – gas.
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
Design of the optical part – aspherical, biconvex, asymmetric, apodized diffraction-refraction optics, multifocal, toric IOL.
The cylindrical force of the lens in the IOL plane is from 1.0 D to 3.0 D
The angle of incline of the base elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with the increment of 0.5 D.
Astigmatism correction from 1.0 to 3.0 D
A-constant is 118.9
One-component IOL of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate with chromophore ImprUV ™;
The form of haptic elements is Modified L of Slimplant and StableForce technology
Type of sterilization – gas.

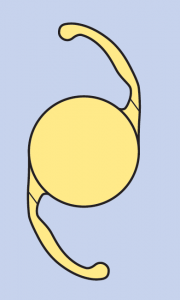

AcrySof® IQ
AcrySof®IQ family of monofocal intraocular lenses:
Exceptional efficiency, unprecedented proof.
Backed by an impressive amount of published clinical trials, only this class of IOLs gives you the confidence to deliver exceptional results for each patient.
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm.
The design of the optical part is aspherical, biconvex, asymmetric
The angle of inclination of the base elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with an increment of 0.5 D;
Profile of thin optics.
The A-constant is 118.7
One-component IOL of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate with chromophore ImprUV ™
The form of haptic elements is Modified L of Slimplant and StableForce technology
Type of sterelization- gas.
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
Design of the optical part – aspherical, biconvex, asymmetric, toric IOL.
The cylindrical force of the lens in the IOL plane is from 1.00 D to 6.00 D
The angle of inclination of the base elements to the optical part is 00
Possible optical power: +6.0 – 30.0 D with an increment of 0.5 D; from 31.0 to 34.0 D in increments of 1.0 D
Astigmatism correction from 1.0 to 6.0 D
A-constant – 119.0
One-component IOL of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate with chromophore ImprUV ™;
The form of haptic elements is Modified L of Slimplant and StableForce technology
Type of sterilization – gas.

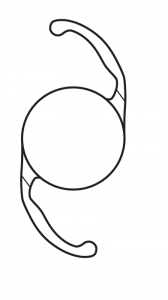

Other Alcon Intraocular lenses
The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm.
The design of the optical part is biconvex, asymmetrical on the front surface
The angle of inclination of the base elements to the optical part – 00
Possible optical power: +6.0 – 30.0 D with a increment of 0.5 D; +31.0 -40.0 D in increments of 1.0 D
Thin optics profile
A-constant – 118.4
One-component IOL of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate;
The form of haptic elements – modified L (Modified L) technology Slimplant and StableForce, UV filter
Type of sterilization – gas.

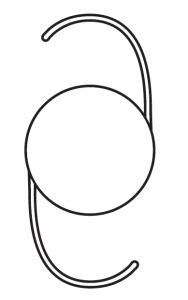

The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
The design of the optical part is biconvex, with optical power on the front surface
The angle of inclination of the base elements to the optical part is 100
Possible optical power: +6.0 – 30.0 D with an increment of 0.5 D.
A-constant – 118.4.
IOL is made of three components:
Optical part of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate;
Support elements made of polymethyl methacrylate.
Type of sterilization – gas.
The refractive index is 1.55
Water content – 0.3%

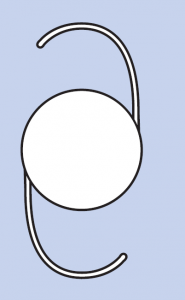

The diameter of the optical part is 6.0 mm
The total length, taking into account the base elements – 13.0 mm
The design of the optical part is the meniscus
The angle of inclination of the base elements to the optical part is 50
Possible optical power: minus 5.0 – plus 5.0 D with an increment of 1.0 D.
The A-constant is 118.9.
IOL is made of three components:
Optical part of a copolymer of 2-phenylethyl acrylate and 2-phenylethyl methacrylate; UV filter;
Support elements made of polymethyl methacrylate.
Type of sterilization – gas.
